WLAN-IP-COM United States

WLAN

AP Controller Ceiling AP In-wall AP Outdoor AP

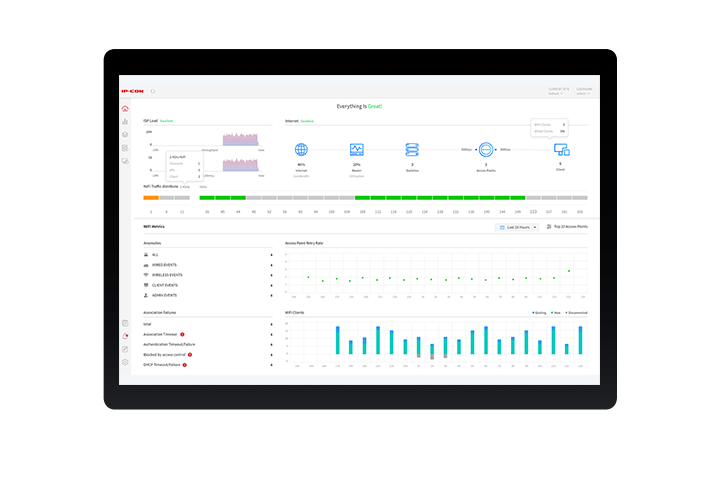

ProFi Software Controller

Manage and monitor all APs of ProFi

Remote network management by Cloud
Local management & Remote management
Maximum APs managed number up to 1000
Graphical presentation of loaded equipment in current network, you can check the state of network traffic any time
Support online upgrade

Overview Download Specification

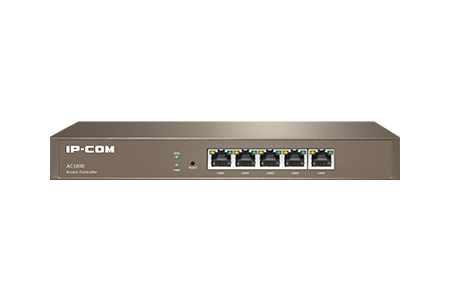

AC1000

AP Controller

Maximum AP managed number up to 128
5 Gigabit Ethernet Ports
AP and clients online status statistics
Email and software alarm
Unified manage all indoor and outdoor APs

Overview Download Specification

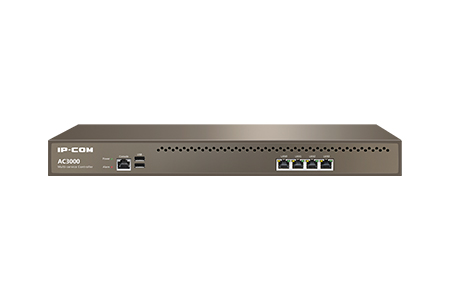

AC3000

Access Controller

X86 Hardware Platform
Centralized Manage AP from multi location or branch
Maximum AP manage number up to 3000
Max. user authentication number up to 50000
Intra-AC, Inter-AP L2 /L3 roaming time less than 50ms

Overview Download Specification

Pro-6-LR

802.11AX Dual-Band Long Range Access Point

Up to 3000 Mbps dual-band data rate
The new WPA3 encryption mode safeguards your network security
2.4 GHz band 2x2 MIMO with a radio rate of 574 Mbps
5 GHz band 2x2 MIMO with a radio rate of 2402 Mbps
Power input with 802.3at PoE

Overview Download Specification

iUAP-AC-LITE

802.11ac Dual-Band Access Point

MU-MIMO for high throughput
MUp to 1167 Mbps dual-band data rate
M24V0.5A Passive PoE or IEEE 802.3af/at PoE power supply
MRange of up to 150 meters

Overview Download Specification

iUAP-AC-LR

802.11ac Dual-Band Long Range Access Point

MU-MIMO for high throughput
Up to 1317 Mbps dual-band data rate
24V0.5A Passive PoE or IEEE 802.3at Gigabit PoE Port
Wireless coverage up to 200 meters

Overview Download Specification

W66AP

AC1750 Wave2 Gigabit Access Point

3×3 MU-MIMO design for wider coverage and higher capacity
Gigabit internet connection for ultra-fast experience
Up to 1750 Mbps dual-band data rate
Centralized management by all IP-COM ACs and enterprise routers

Overview Download Specification

W64AP

AC1350 Wave2 Gigabit Access Point

High power for broader and stable coverage
Gigabit internet connection for ultra-fast experience
Up to 1317 Mbps dual-band data rate
Centralized management by all IP-COM ACs and enterprise routers

Overview Download Specification

W63AP

AC1200 Wave 2 Gigabit Access Point

Gigabit port
Up to 1167 Mbps dual-band data rate
MU-MIMO for high throughput
Supports to be centrally managed by all IP-COM access controllers (AC) and enterprise routers that includes AC functionality

Overview Download Specification

AP325 v3

Wireless access point

Support 2.4Ghz 2x2 802.11n/g/b
Up to 300 Mbps data rate
Support wireless controler, enterpriser wireless management

Overview Download Specification

W36AP

AC1200 Dual Band Gigabit In-Wall Access Point

Multicolor decals for colorful AP panels
Up to 1167 Mbps dual-band concurrent wireless speed
86 mm x 86 mm in-wall design, ultra-thin shell and fashionable appearance
Standard PoE power supply supported, making installation easier
Central management of IP-COM full system AC and enterprise router supported

Overview Download Specification

AP255 v2

300Mbps Wireless In-wall Access Point

2.4GHz 11n 300Mbps
Two 10/100Mbps LAN ports
Compliant with PoE 802.3af
Vlan tagging for multi SSID
86 Type wall mount junction box design

Overview Download Specification

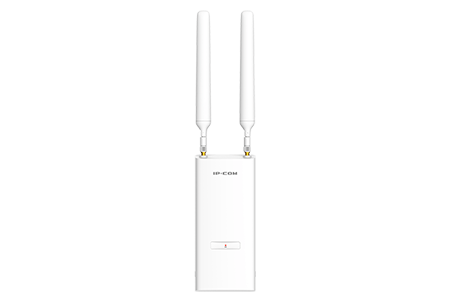

iUAP-AC-M

802.11AC Indoor/Outdoor Wi-Fi Access Point

Durable IP65 enclosure for outdoor Wi-Fi applications
MU-MIMO technology for high throughput
Concurrent dual-band data rate up to 1167 Mbps (2.4 GHz: 300 Mbps 5 GHz: 867 Mbps)
Detachable antennas and 2 RP-SMA connectors
Coverage radius of 200 meters

Overview Download Specification
