Pro-7-LR    Overview
Pro-7-LR Pro-7-LR
Ceiling AP

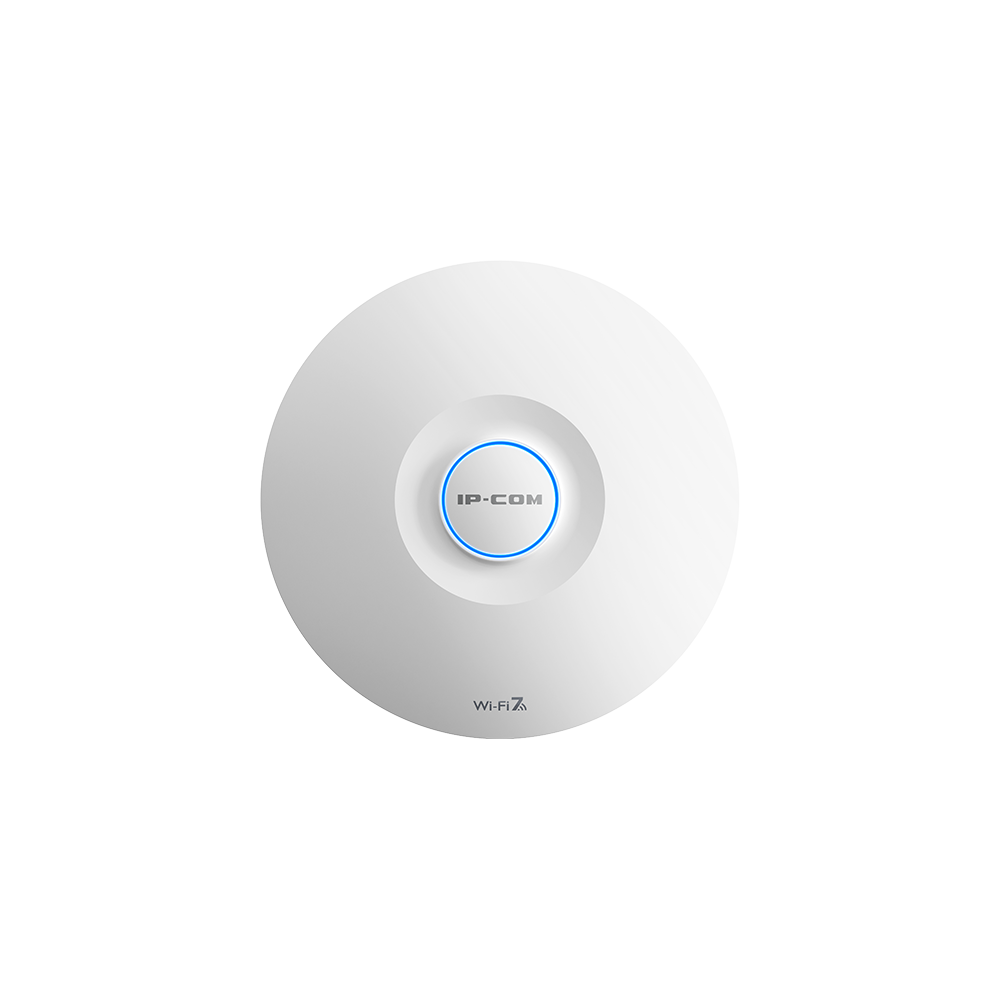

Pro-7-LR

BE5010 Dual-Band WiFi7 Ceiling Access Point

  • BE5010 dual-band Wi-Fi 7
  • 802.11k/v/r Roaming
  • IPCOM ProFi Cloud Management
  • Power input with 802.3at PoE
  • 2.5G Ethernet uplink port
Unmatched Speed and Experience
BE5010
Dual-Band WiFi7 Ceiling Access Point
IP-COM

Wi-Fi 7 technology enhance speed limitation and efficiency

Pro-7-LR adopts of new generation Wi-Fi 7 technology, it brings innovative techchnology including MLO, Preamble Pncturing,4K QAM and Multi-SRU etc., to improve the speed limitation and efficiency.
IP-COM

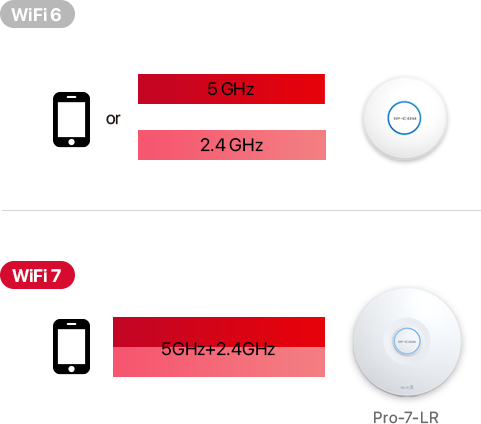

Multi-Link Operation

WiFi 7 enables devices to use multi-link aggregation to achieve higher throughput, lower latency, and higher reliability;

IP-COM

Preamble Puncturing

Before, busy channels meant bands could not be fully used. Data would only be sent through the primary channel. Now, with Preamble Puncturing, the interference can be blocked, opening up more channels to use.

No Preamble Puncturing technology
IP-COM
Preamble Puncturing technology
IP-COM
Skip interference, significantly improve anti-interference ability.

4K QAM

WiFi 7 adopts a higher-order modulation scheme to further enhance peak rates, : 4096-QAM. This enables each symbol to carry 12 bits rather than 10 bits, which means 20% higher theoretical transmission rates than WiFi 6’s 1024-QAM.

IP-COM

Multi-SRU

WiFi 7 allows multiple RUs to be assigned to a single user and can combine RUs for increased transmission efficiency.

IP-COM

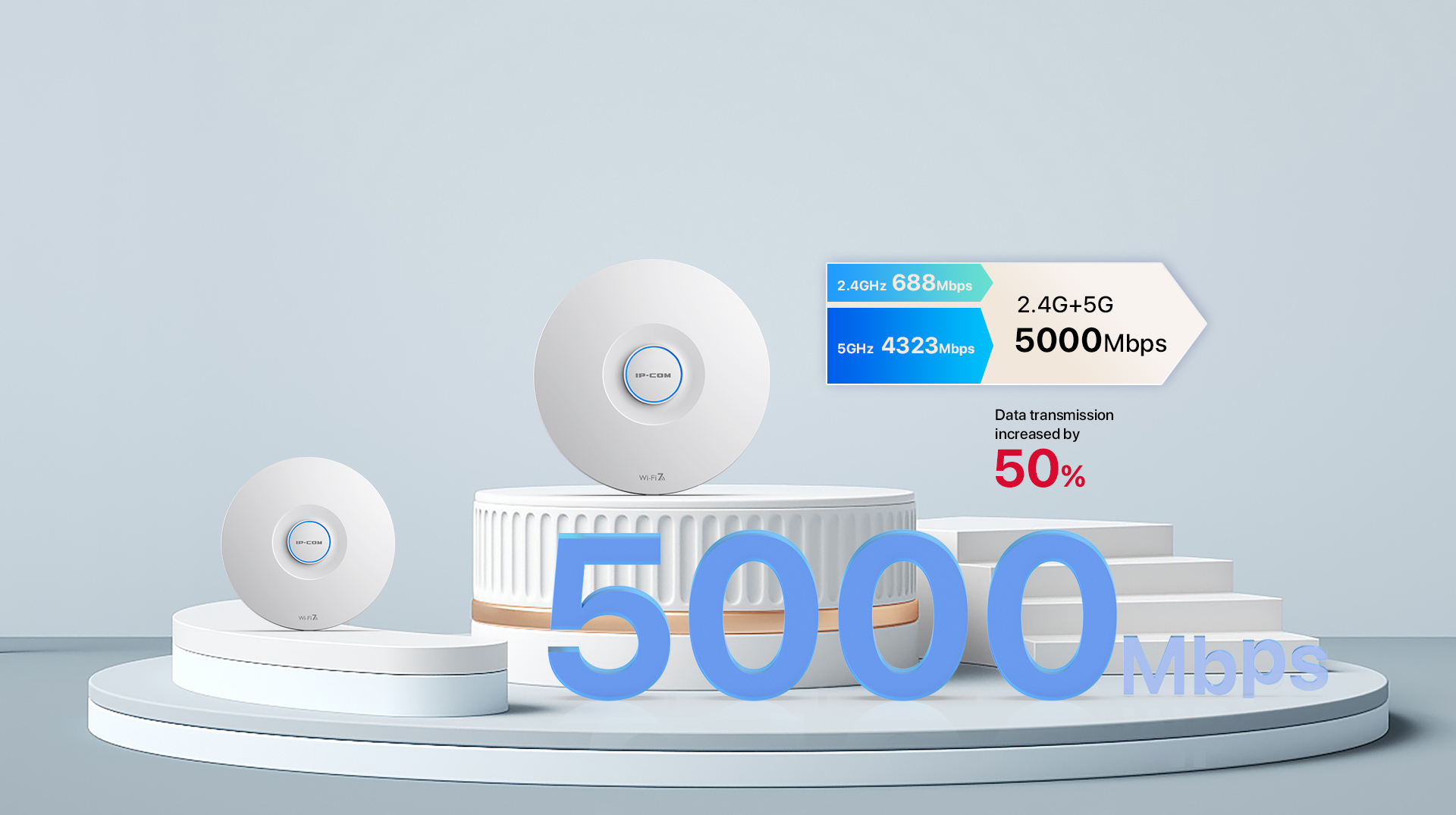

Unmatched speed up to 5.1 Gbps

Powered by Wi-Fi 7 technology, Pro-7-LR delivers an incredible wireless rate of up to 5.1 Gbps, enabling mobile devices to run at full speed. Enjoy fluent video streaming, immersive AR/VR gaming, and blazing-fast downloads.
IP-COM

2.5 Gigabit Wired Connections

Pro-7-LR comes with one 2.5Gbps LAN port and one gigabit port. The maximum throughput from wireless end device to LAN can be up to 2.1Gbps. it breakthroughs the 1Gbps bandwidth bottleneck and drive your devices to peak performance.
IP-COM

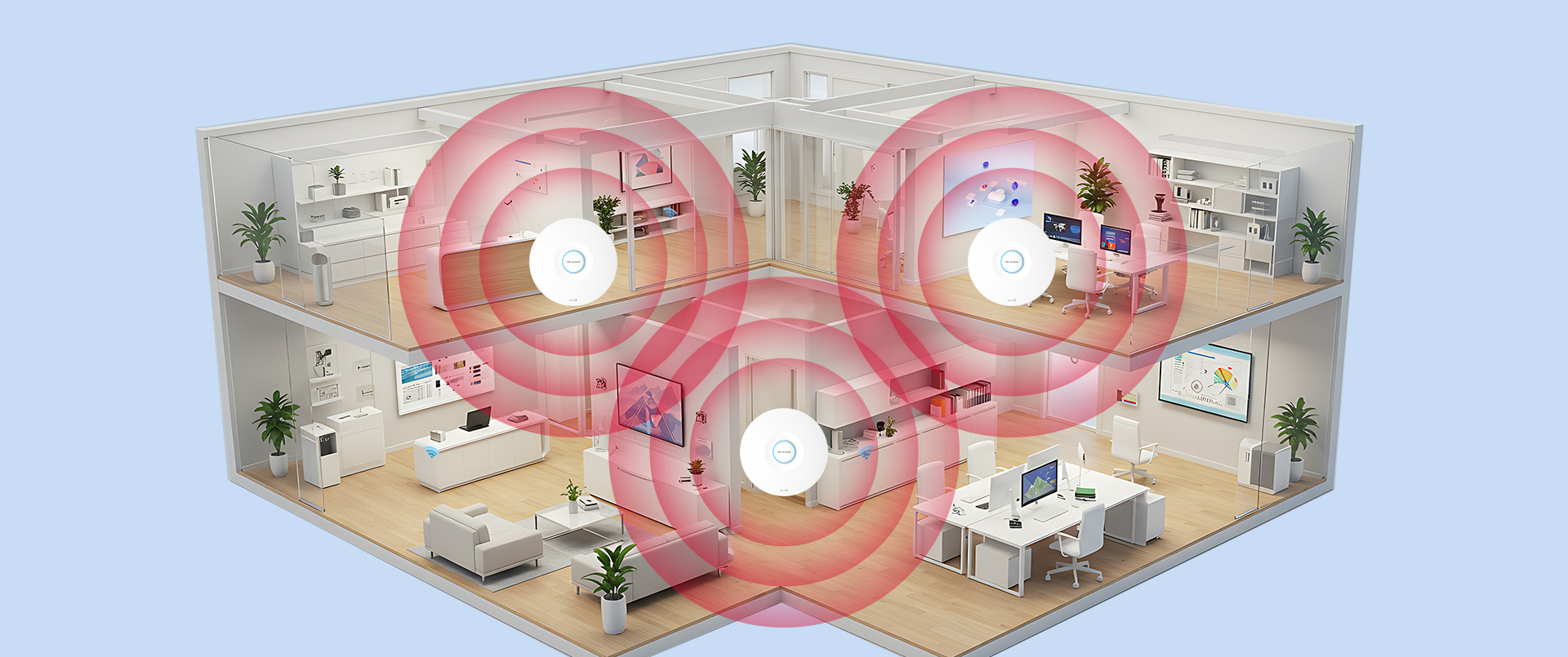

Independent power amplifiers and high gain antennas deliver great Wi-Fi Coverage

Pro-7-LR adpots independent power amplifiers and high gain antennas design, it provide the wider Wi-fi coverage and wall penetration ability to deliver great wifi signal in each corner.
IP-COM

Always Connect to Best Wi-Fi Signal with Millsecond-level Roaming

Pro-7-LR adopts the millsecond-level fast Roaming technology, when mobile device such smart phone, laptop move between different APs, it can switch mobile device to the best wifi signal smoothly to make sure online conference, online video,and online game etc,. application enjoy great connection experience.
IP-COM

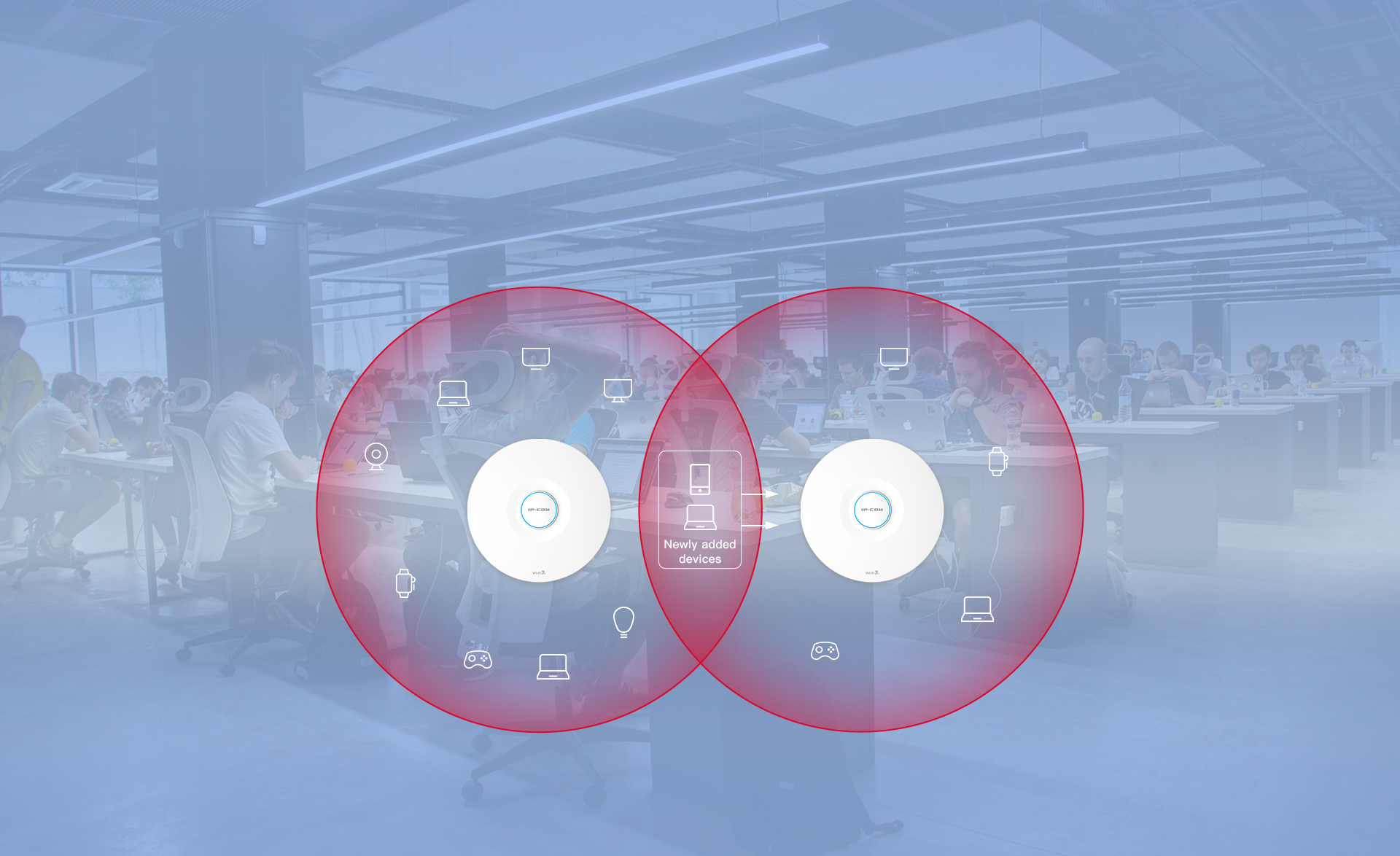

Load balance for Wi-Fi user

Pro-7-LR support wireless user load balancing to ensure that client devices are distributed evenly, so no single AP is simultaneously overloaded with too many client devices. Therefore, the total number of client devices can be served by various APs, delivering better performance and an improved user experience.
IP-COM
Intelligent Load Balance

Easy to setup and management

Powered by PoE 802.3at, Easy to depolyment
IP-COM

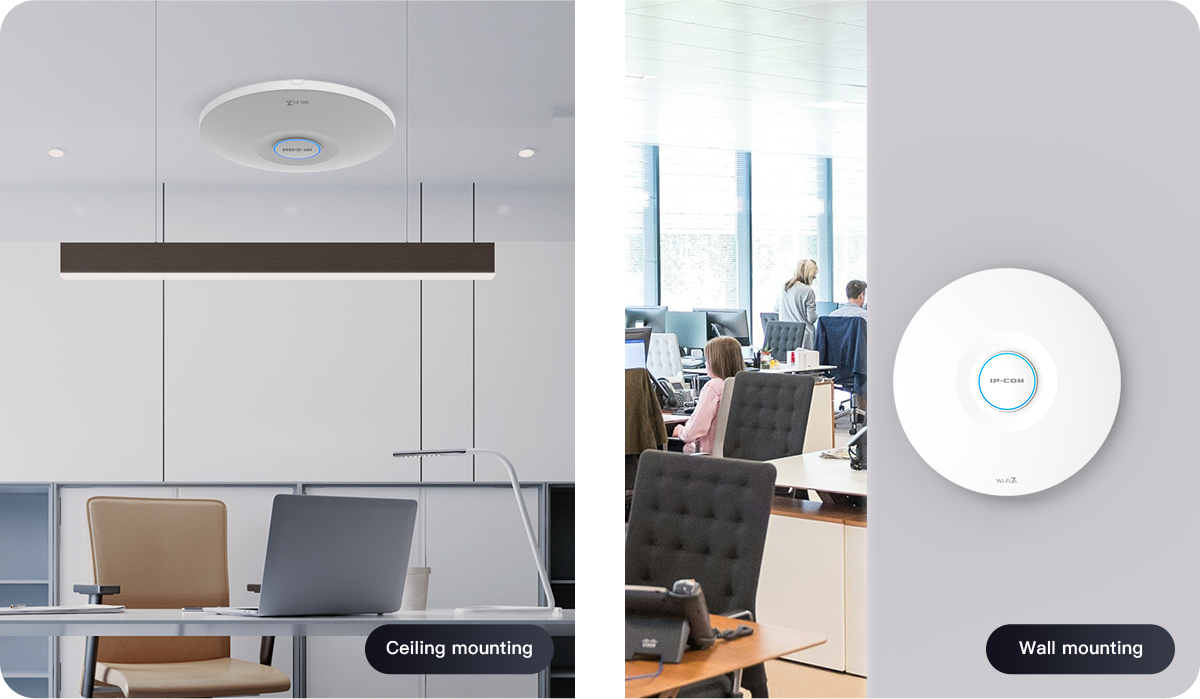

Ceiling and Walling mounting supported
IP-COM

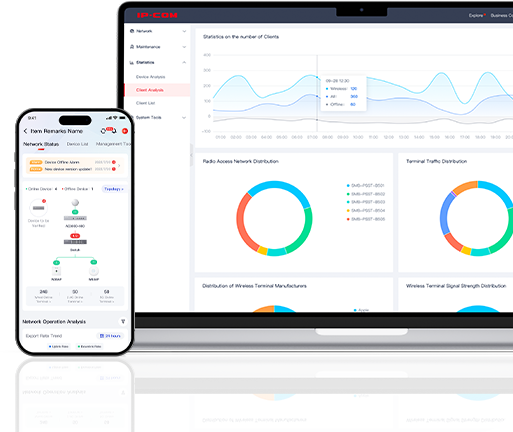

Unified management by ProFi APP and cloud platform
IP-COM
A single AP can be configured in three steps
1 Working mode
IP-COM
2 Configure wireless
IP-COM
3 Configuration completed

Scenarios

IP-COM
SMBs
IP-COM
Restaurant
IP-COM
4S Store
IP-COM
Hotel
IP-COM
Dormitory
IP-COM
Apartment
