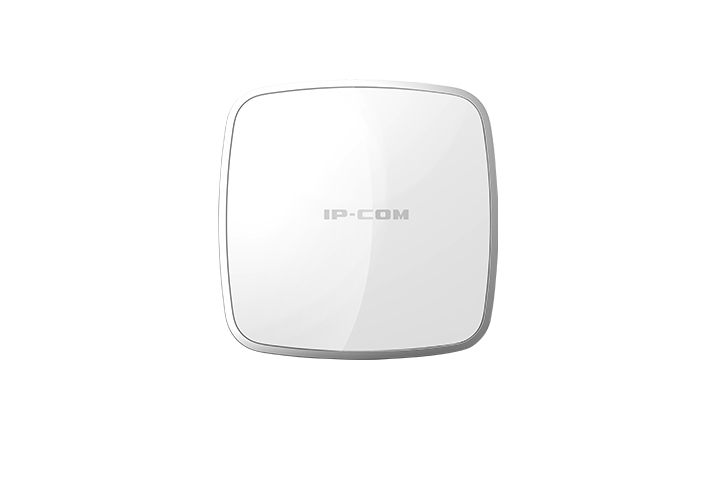

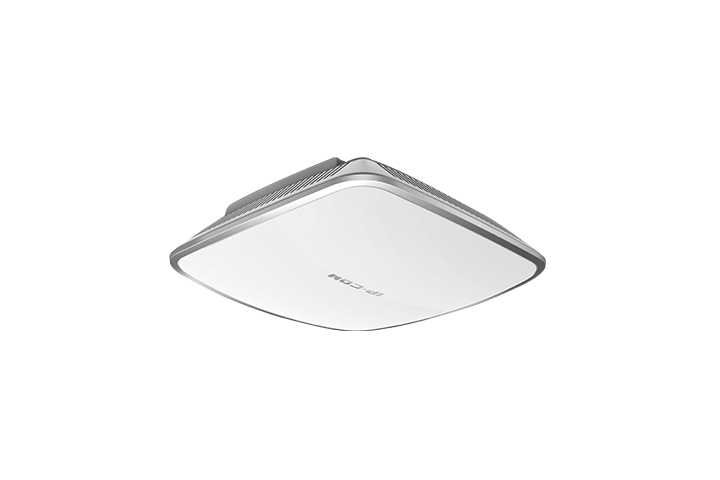

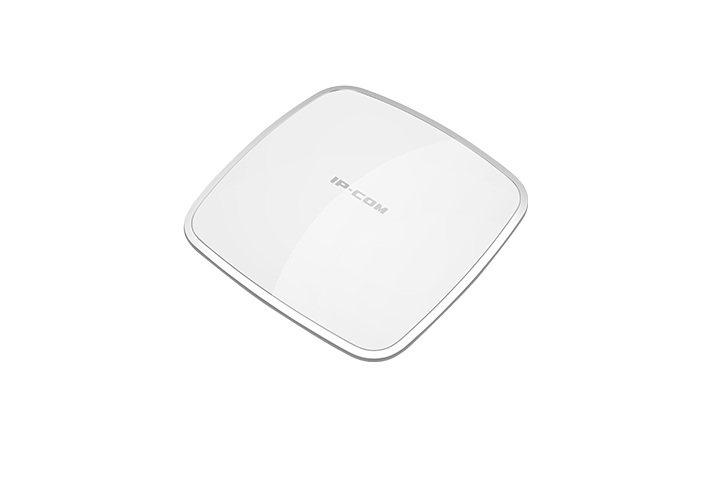

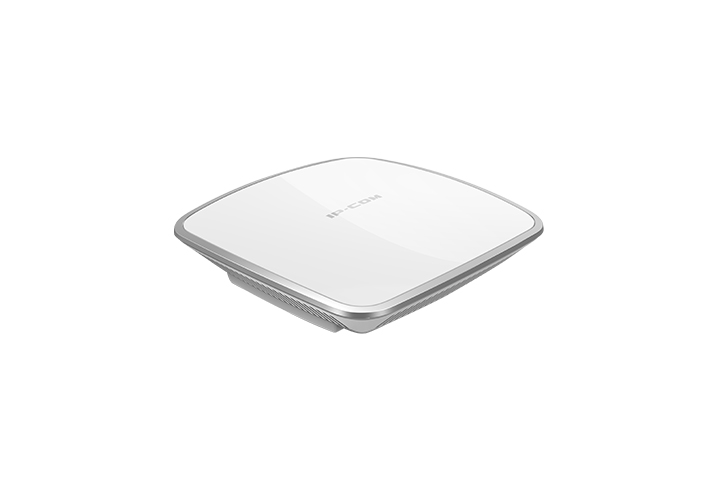

AP325 v3

AP325 v3

Wireless access point
  • Support 2.4Ghz 2x2 802.11n/g/b.
  • Up to 300 Mbps data rate.
  • Support wireless controler, enterpriser wireless management.
IP-COM 11n series AP(include AP325 and AP340 ) are enterprise-grade, high performance 11n Wi-Fi access points. Through the 802.11n Wi-Fi technology and enhanced transmit power and receive sensitivity, it can increase the scope of coverage, improve access density and operation stability.

High performance

300Mbps wireless transfer rate, which is approximately 6 times faster than 802.11g, is ideal for scenarios like office, conference room, libraryetc.

Advanced Wi-Fi security

IP-COM AP support almost all the latest encryption and authentication mechanisms(such as WEP,WPA-PSK,802.1X,WEB Portal,Social login),make it simple for administrator to manage enterprise security and guest access.

Low-profile industrial design

With it sleek, low profile design and controllable LEDs, blends into hotel, office environments.

Lower cost of implementation

Supporting PoE standard , AP can integrates into your existing 802.3af or 802.3at power and network infrastructure.

Automatic RF optimization

Advanced RF optimization with automatic channel, power level selection,  to reduce interference. AP can recognize various channels being used and automatically switch to the best available channel to provide best experience for the users.

Dual Fat/Fit mode

When the network start small, user can acquire the AP and set it to Fat mode. As the user grows and more devices are installed, it's recommended to add a IP-COM AC to simplify network management and centrally manage all AP. It can significantly reduces deployment and management effort by automating device provisioning, firmware upgrades and policy enforcement.

  • Support 2.4Ghz 2x2 802.11n/g/b.
  • Up to 300 Mbps data rate.
  • Support wireless controler, enterpriser wireless management.
Product information
Operating Temperature -10℃~45℃
Storage Temperature -30℃~70℃
Operating Humidity 10%-90% (non-condensing)
Storage Humidity 10%-90% ?(non-condensing)
Default Login IP 192.168.0.254
Default User Name admin
Default Password admin
Certifications FCC/CE/RoHS
Hardware Specifications
Frequency Band 2.4GHz
Wi-Fi Standards 802.11b/g/n
PHY Data Rates 300Mbps
Ethernet Ports 1*10/100Mbps PoE/LAN port
DC Power Interface 1 DC Power Interface
Reset Button 1
LED Indicator 1 Sys
Max Power Consumption 8W
Power Supply 802.3af & 12V1A DC
Antennas 2x Integrated 2.4GHz Omni-directional, 4dBi gain
Software Specifications
Operating Mode AP,WDS,Client+AP
WiFi Radio Enable or Disable
BSSIDs 4
SSID Hiding Enable or Disable
User Isolation Support
Clients Limit Connected user number limitation for every SSID
VLANs 802.1Q, 4094 VLAN IDs (1 to 4094) and SSID-based VLAN assignment
RSSI Threshold Support
WMM Capable Support
Power Save (APSD) Support
Spectrum Analysis Support
Automatic channel control Support
Adjustable Power Adjustable step by 1dbm
Access Control Connect limitation based on mac address
Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
DHCP Server Support
VPN Pass-Through PPTP,L2TP
Schedule Reboot Support
Page Timeout Support
Network Diagnoses Ping
Time&Date Setting Support
WiFi Client Association Status Support
System Monitoring Status Statistic and Event Log
Backup Configuration Support
Restore Configuration Support
Reset Device Support from Web UI or AP Controller
Username Management Support from Web UI or AP Controller
Reboot Device Support from Web UI or AP Controller
Firmware Upgrade Support from Web UI or AP Controller
Centralized Management Managed by AC1000, AC2000, AC3000
Working environment
Operating Temperature -10℃~45℃
Storage Temperature -30℃~70℃
Operating Humidity 10%-90% (non-condensing)
Storage Humidity 10%-90% ?(non-condensing)
Default Login IP 192.168.0.254
Default User Name admin
Default Password admin
Certifications FCC/CE/RoHS
