iUAP-AC-M

iUAP-AC-M

802.11AC Indoor/Outdoor Wi-Fi Access Point
  • Durable IP65 enclosure for outdoor Wi-Fi applications
  • MU-MIMO technology for high throughput
  • Concurrent dual-band data rate up to 1167 Mbps (2.4 GHz: 300 Mbps; 5 GHz: 867 Mbps)

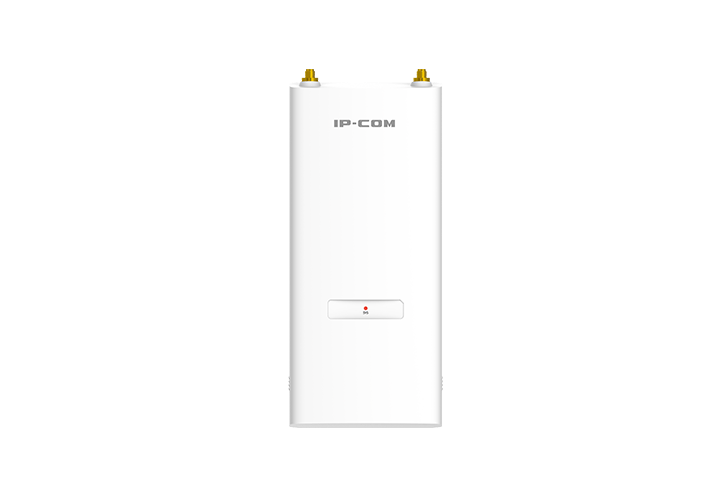

  • Detachable antennas and 2 RP-SMA connectors
  • Coverage radius of 200 meters

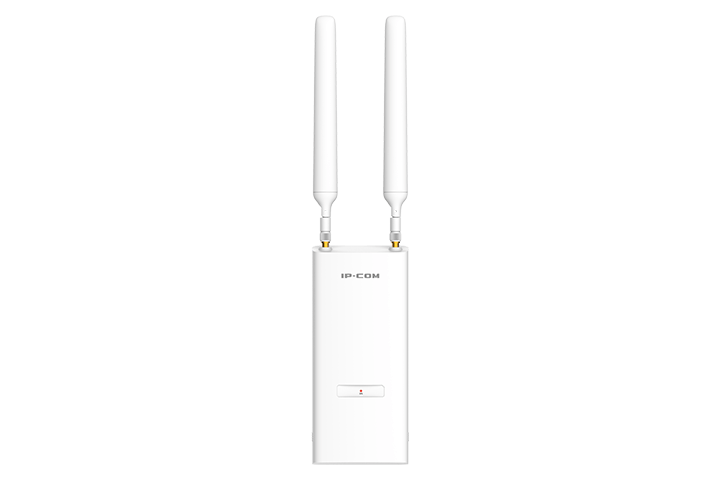

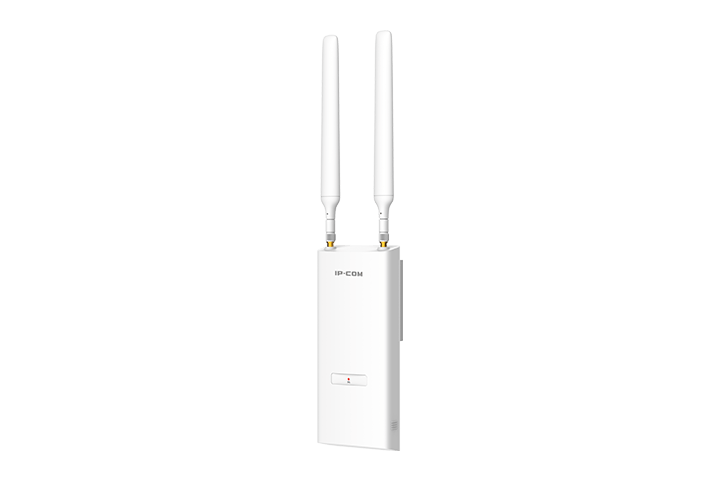

The gigabit dual-band indoor/outdoor access point iUAP-AC-M offers a concurrent data rate as high as 1167 Mbps. Equipped with 2 omni-directional high-gain antennas, iUAP-AC-M provides a maximum coverage radius of 200 meters. iUAP-AC-M can be installed either on the wall or around a pole. iUAP-AC-M can meet different requirements by connecting antennas of different specifications to the standard RP-SMA connectors. With the IP65 enclosure, iUAP-AC-M is designed for wireless coverage in factories, warehouses and other harsh outdoor environments.

IP65 protection

Professional materials and design guarantee iUAP-AC-M an IP65 enclosure for harsh environments both indoors and outdoors.

IEEE 802.11ac Wave2 and MU-MIMO

Powered by MU-MIMO technology, a single iUAP-AC-M can communicate with multiple wireless clients at the same time, letting you enjoy higher throughput and better experience.

Dual-band for more connected clients

iUAP-AC-M allows clients that support either 2.4 GHz or 5 GHz band, or both to connect to it at the same time, tripling the quantity of connected clients of traditional single-band AP.

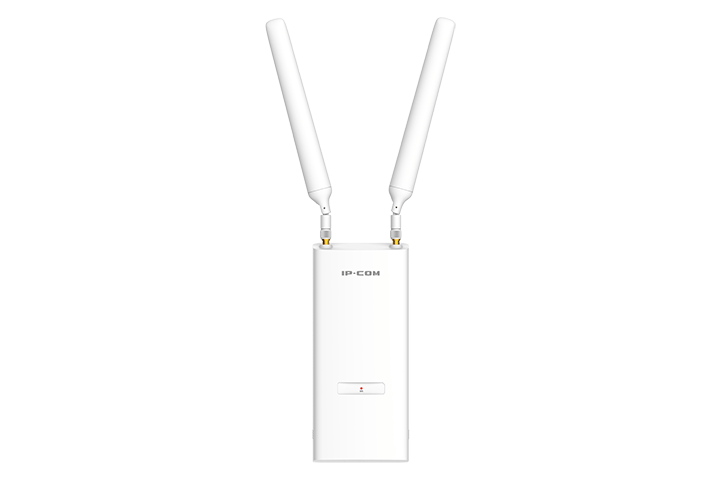

High-gain omni-directional antennas

Equipped with two 5 dBi high-gain omni-directional antennas, iUAP-AC-M provides a maximum coverage radius of 200 meters. iUAP-AC-M can meet different requirements by connecting antennas of different specifications to the standard RP-SMA connectors.

Built-in RF for intelligent optimization

Featuring various anti-interference algorithms, the built-in RF enables iUAP-AC-M to evenly allocate bandwidth resources for multiple users, filter interference, and optimize data rate, offering you a guaranteed signal strength and reliable wireless experience.

VLAN tagging for SSID

iUAP-AC-M allows you to set multiple SSIDs and add VLAN tags for SSIDs, thus protecting your network.

Standard PoE sourcing and DC power supply for easy deployment

You can use an IEEE 802.3at-compliant PoE sourcing equipment, or a 24V DC power adapter to power on iUAP-AC-M.

Centralized management

The iUniFi Controller makes it easy to manage and monitor the whole iUniFi devices in a real-time manner and the cloud services enable a remote and secure access free from the restrictions of device location.

  • Durable IP65 enclosure for outdoor Wi-Fi applications
  • MU-MIMO technology for high throughput
  • Concurrent dual-band data rate up to 1167 Mbps (2.4 GHz: 300 Mbps; 5 GHz: 867 Mbps)
  • Detachable antennas and 2 RP-SMA connectors
  • Coverage radius of 200 meters
Product Information
Model iUAP-AC-M
Mounting Pole Mounting and Wall Mounting
Dimensions 194.7*83*42.1 mm
Hardware Specifications
Frequency band 2.4 GHz, 5 GHz
Wireless standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
2.4 GHz data rate 1 - 300 Mbps
5 GHz data rate 6 - 867 Mbps
Ethernet port 1*10/100/1000 Base-TX port
Button 1*Reset
LED indicator 1*SYS
Waterproof level IP65
Lightning protection 6000 V
Max. power consumption 11.5 W (Full-load)
Power supply standard IEEE 802.3af/at & 24V, 0.5A Passive PoE
Antenna 2*5dBi,RP-SMA Connector
2.4 GHz Max. output power 26 +/- 1.5 dBm
5 GHz Max. output power 26 +/-1.5 dBm
802.11b RX sensitivity -93 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity -72 dBm
5 GHz 802.11a RX sensitivity -93 dBm
5 GHz 802.11n (MCS7) RX sensitivity -74 dBm
Software Specifications
Operating modes AP, Client+AP
Hide SSID Supported
Max. No. of SSID 2.4 GHz: 8
5 GHz: 4
Max. connected clients 2.4 GHz: 128
5 GHz: 256
WEP Supported
WPA-PSK AES/TKIP
WPA2-PSK AES/TKIP
WPA Supported
WPA2 Supported
Access control MAC address-based
Adjustable power transmit Supported
Frequency analysis Supported
AP isolation Supported
Connected client control Supported
RSSI threshold Supported
WMM Supported
VLAN tagging for SSID Supported
Transmission power Adjustable by 1 dBm
LED indicator control Supported
Diagnostics tool Ping, Traceroute
Scheduled reboot Supported
Reboot at specified interval Supported
Management Web UI
System logs Supported
Firmware upgrade Local and AC upgrade
Reboot Local and AC reboot
Reset Local and AC reset
Backup configuration Supported
Restore configuration Supported
Operating Environment
Default login IP address 192.168.0.254
Default user name admin
Default password admin
Operating temperature -10℃ - 45℃
Operating humidity (10% - 90%) RH, non-condensing
Storage temperature -30℃ - 70℃
Storage humidity (10% - 90%) RH, non-condensing
