AC1200 Dual Band Gigabit In-Wall Access Point
  • Multicolor decals for colorful AP panels
  • Up to 1167 Mbps dual-band concurrent wireless speed
  • 86 mm x 86 mm in-wall design, ultra-thin shell and fashionable appearance
  • Standard PoE power supply supported, making installation easier
  • Central management of IP-COM full system AC and enterprise router supported
The AC1200 Dual Band Gigabit In-Wall Access Point (AP) is an IP-COM high-performance wireless access point designed for hotel rooms, villas, large apartments, KTV compartments and other places. Compliant with IEEE 802.11ac protocol and Wave 2 standard, and featured with the MU-MIMO technology, APs of this series support a dual-band concurrent wireless speed of up to 1167 Mbps. Adoption of the standard 86 mm x 86 mm in-wall design enables that the AP can be installed in any in-wall electrical boxes of 86 mm x 86 mm and 75 mm x 75 mm. Elegant and exquisite appearance goes well with the interior decoration design of the room. With the assistance of the existing in-wall electrical box structure, the AP helps you deploy your wireless networks easily, freeing you from time-consuming networking, and effectively addressing the weak WiFi signal problem in guest rooms.

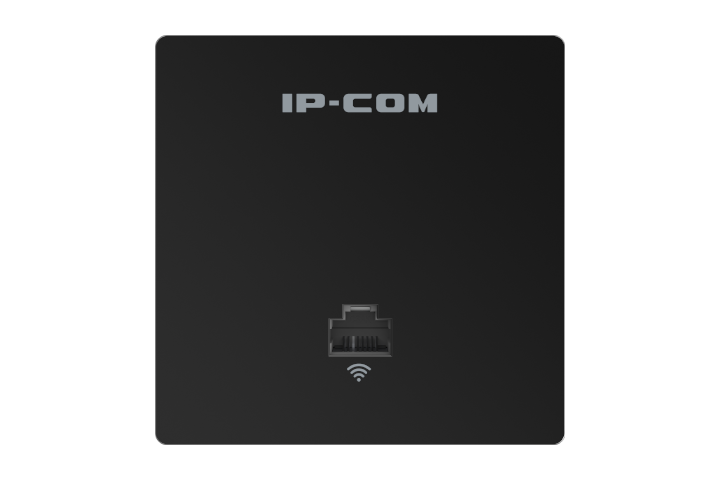

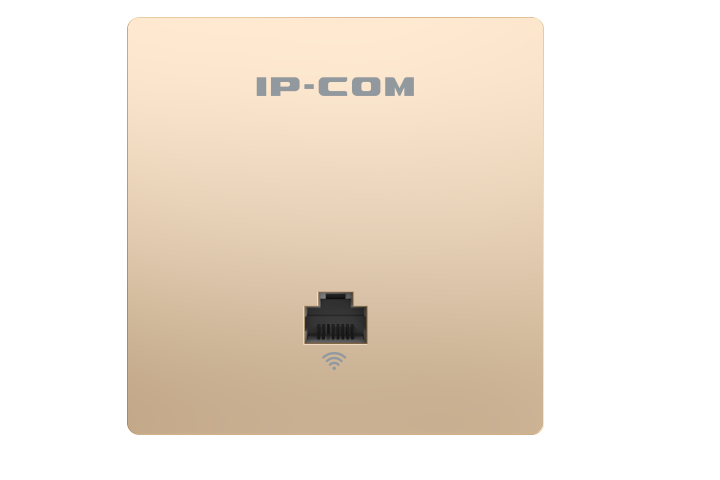

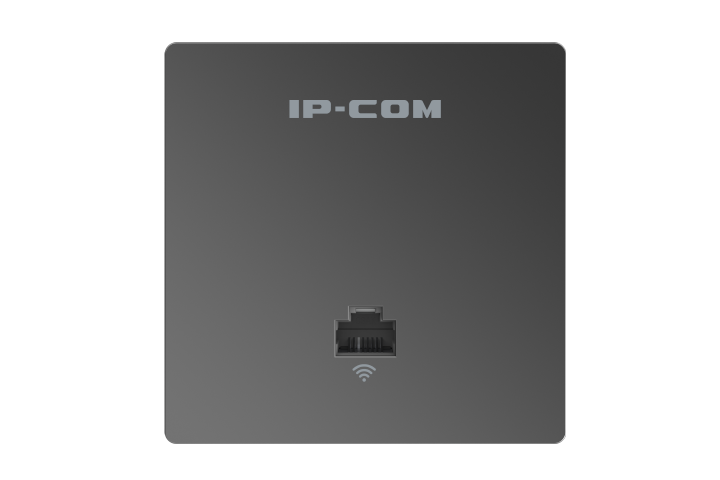

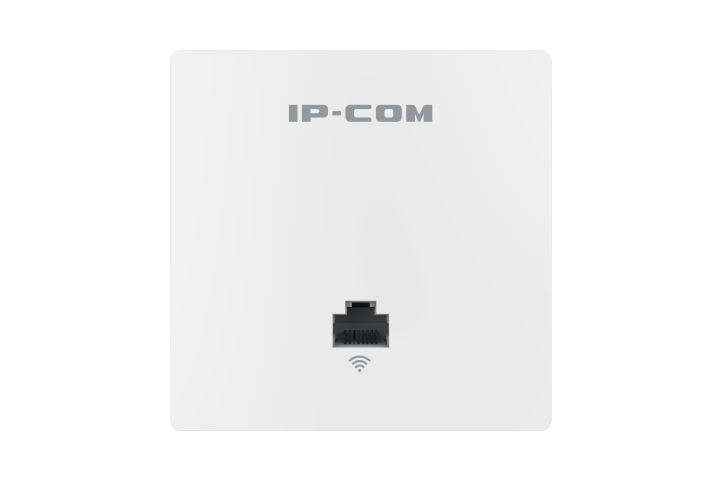

Colorful panel pastes, a perfect match for the installation environment

Multicolor panel decals make the AP go well with the installation environment.

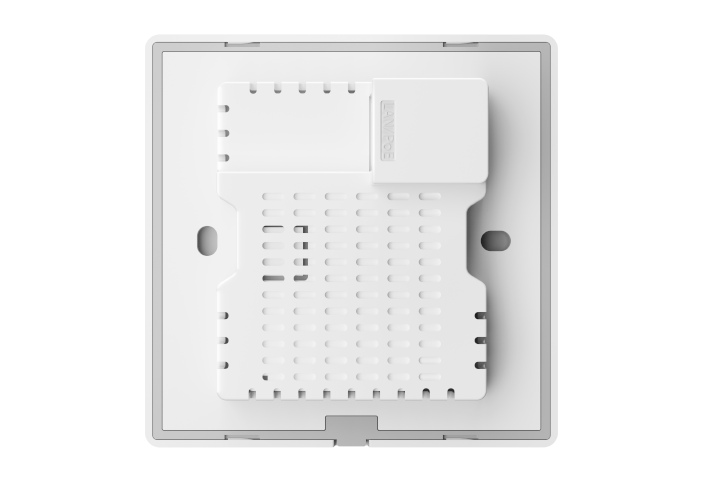

Standard 86 mm x 86 mm design for easy installation

The standard 86 mm x 86 mm design and elegant appearance make the AP go well with various interior decoration.

Complaint with IEEE 802.11ac and WAVE2.0

Featured with the MU‑MIMO technology, a single AP can communicate with multiple wireless terminals at the same time, significantly improving the throughput of multi-user concurrency and enhancing user experience.

2.4 GHz and 5 GHz concurrency for a higher capacity

With both pure 5 GHz band with less interference and 2.4 GHz band with stronger compatibility and longer transmission distance, the AP allows 2.4 GHz and 5 GHz wireless terminals to access at the same time, ensuring more wireless clients to access. The single AP has more than three times capacity of the traditional single band AP.

Spectrum navigation (5 GHz priority), an escort for network performance

The AP intelligently enables the wireless clients to connect to 5 GHz wireless network in priority, ensuring load balancing at dual bands and improving the wireless performance.

Precise RF signal optimization, a guarantee of 2-room WiFi coverage without dead zone

With the independent RF chip, the AP separates the power supply part and WiFi signal processing part, completely avoiding the interference of the power magnetic field on the WiFi signal. Boosted by the high-performance antenna, the AP can cover two side-by-side hotel rooms with full WiFi.

Standard PoE power supply, an assurance of easy AP upgrade and installation

The AP can be powered by the PoE devices. With an Ethernet cable, the AP can be powered and transmit data at the same time. The maximum power supply distance of up to 100 meters enables the AP to be installed easily in hotels or your houses without breaking the existing power line layout.

Supporting unified configuration and management

The AP supports the unified management and configuration of IP-COM ACs and enterprise routers, enabling the network administrators to manage, configure and monitor all APs conveniently.

  • Multicolor decals for colorful AP panels
  • Up to 1167 Mbps dual-band concurrent wireless speed
  • 86 mm x 86 mm in-wall design, ultra-thin shell and fashionable appearance
  • Standard PoE power supply supported, making installation easier
  • Central management of IP-COM full system AC and enterprise router supported
Product Information
Product Model W36AP
Product Appearance In-wall access point
Product Dimension 86 x 86 x 32 mm
Application Scenarios WiFi coverage for large-sized apartments/villas/hotel rooms
Hardware Specifications
Working Frequency Band 2.400 – 2.4835 GHz, 5.15 0 – 5.250 GHz
Wireless Protocol Standard IEEE 802.11a/b/g/n/ac
2.4 GHz Access Rate 1-300Mbps
5 GHz Access Rate 6-867Mbps
2.4 GHz Maximum Connections 128
5 GHz Maximum Connections 128
Ethernet Port 2 10/100/1000 Base TX ports
Reset Button 1 reset button
LED Indicators 1 x SYS LED indicator and 1 x LAN LED indicator
Power Consumption of the Whole Device Full load 7.8 W
Power Supply Mode IEEE 802.3af
2.4 GHz Antenna Gain 4 dBi
5 GHz Antenna Gain 4 dBi
2.4 GHz Output Power 20+/-1.5 dBm
5 GHz Output Power 16+/-1.5 dBm
11b 1 Mbps Received Sensitivity -95 dBm
11n MCS7 Received Sensitivity -73 dBm
11a 6 Mbps Received Sensitivity -93 dBm
11ac MCS7 Received Sensitivity -75 dBm
Software Specifications
Operating Mode AP, Client + AP
SSID Hide Supported
2.4 GHz SSID Number 8
5 GHz SSID Number 4
Chinese SSID Supported
WEP 64/128 bit encryption supported
WPA-PSK AES/TKIP
WPA2-PSK AES/TKIP
WPA Supported
WPA2 Supported
Wireless Access Control MAC address-based filtering supported
TX Power Adjustment Supported
SSID Isolation Supported
AP Isolation Supported
Wireless User Access Limit Supported
Weak Signal Client Access Limit Supported
WMM Supported
5 GHz Band Navigation (5 GHz Priority) Supported
Multicast to Unicast Supported
Detection Broadcast Message Reply Inhibition Supported
Access Control Supported
VLAN and SSID Binding Supported
LED Control Supported
Diagnostic Tool ping
Timed Reboot Supported
Cyclic Reboot Supported
Device Management Web management
Uplink Detection Supported
Hardware Watchdog Supported
Remote Log Management Supported
Logs System log
Firmware Upgrade Local upgrade and upgraded by AC
Reboot Local reboot and rebooted by AC
Reset Local reset and reset by AC
Backup Supported
Restore Supported
AC Management AC1000/AC2000/AC3000 supported
Working Environment
Default Login IP Address 192.168.0.254
Default User Name admin
Default User Name admin
Operating Temperature -10°C to 45°C
Operating Humidity 10% - 90% RH (non-condensing)
Storage Temperature -30°C to 70°C
Storage Humidity 10% - 90% RH (non-condensing)
