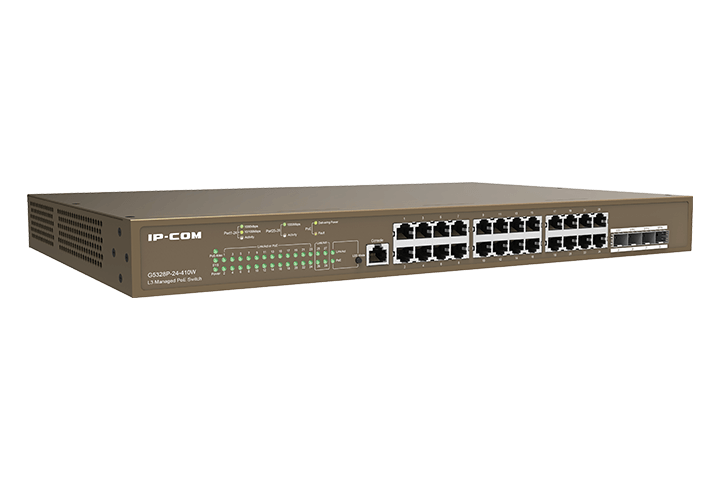

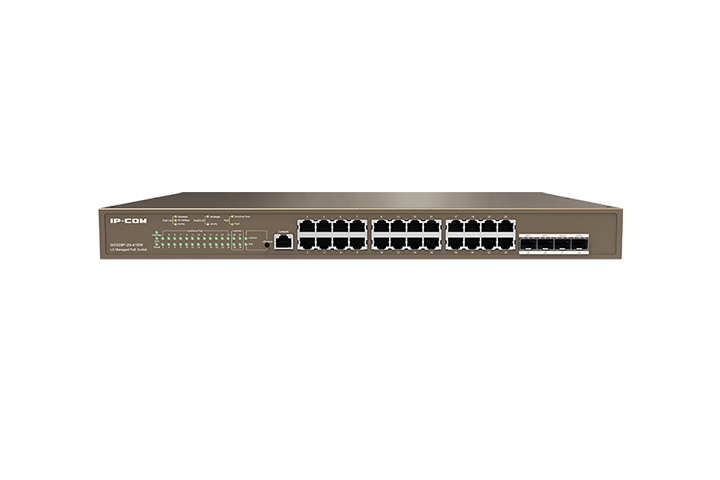

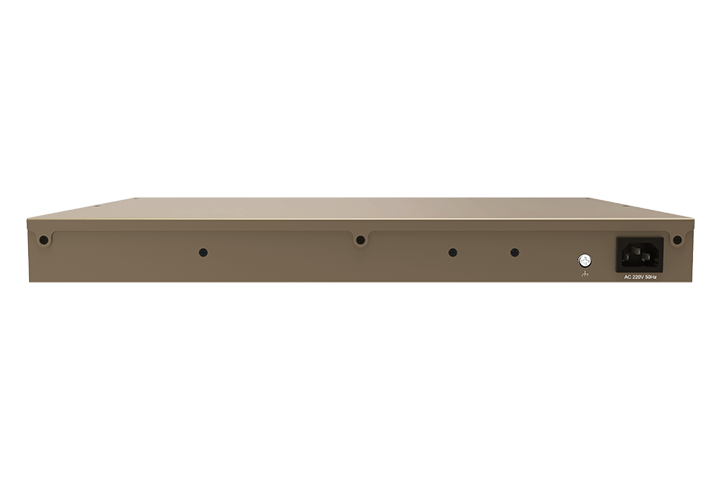

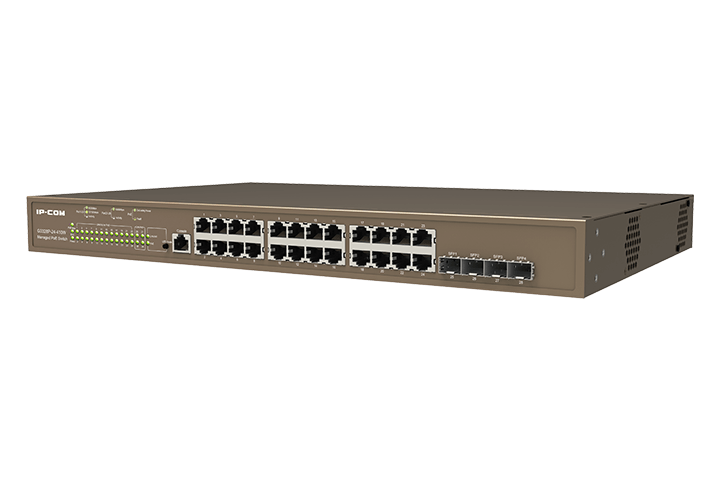

G5328P-24-410W

L3 Managed PoE Switch

G5328P-24-410W G5328P-24-410W G5328P-24-410W G5328P-24-410W

G5328P-24-410W

L3 Managed PoE Switch

  • Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at standards
  • 24 x 10/100/1000 Base-T Ethernet ports (Data/Power), 4 separate 1000 Base-X SFP ports,1 x Console port
  • 16 K MAC address table and MAC address auto-learning
  • 12Mb large buffer
  • Switching capability: 56Gbps
  • Supports abundant services, such as static routing based on IPv4, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP and Telnet
  • Supports App management and visualized local management

G5328P-24-410W    Overview

G5328P-24-410W is an IP-COM Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W. With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.

Dual 6 kV professional lightning protection

Provides dual 6 kV port and power lightning protection, and supports multiple protection features, such as PSE short circuit protection, PoE overload protection, power over-temperature and overvoltage protection, and surge current protection.

Layer-3 routing protocol

Supports Layer-3 static routing protocol, meeting the demand of the 3-layer networking environment in which Layer-3 networks should be interconnected while Layer-2 networks should be isolated, thus realizing an efficient and fast layer-3 routing forwarding

410W high-power

Offers 24 gigabit PoE ports Compliant with IEEE 802.3af and IEEE 802.3at. With a maximum 370 W PoE output power of the whole switch, and a maximum 30 W PoE output power of a single port, the switch helps provide stable power and data transmission for gigabit WLAN and high definition digital monitoring devices

Sound security features

Supports IP address filtering, MAC address filtering, ARP filtering, DoS attack defense, and ACL access control list, improving network security
