G3310F

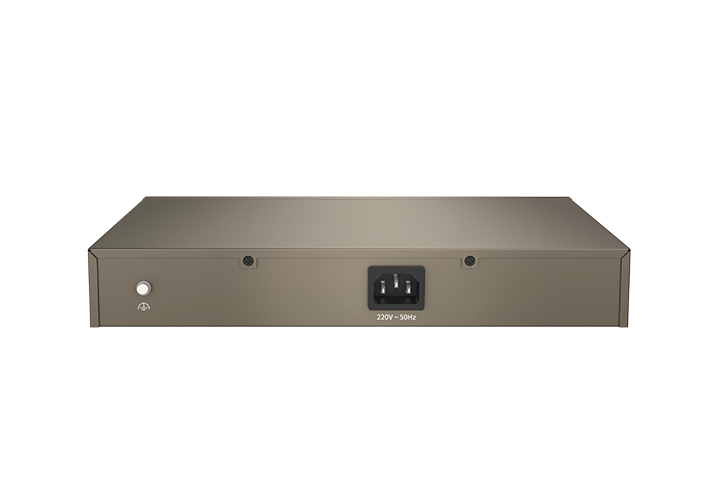

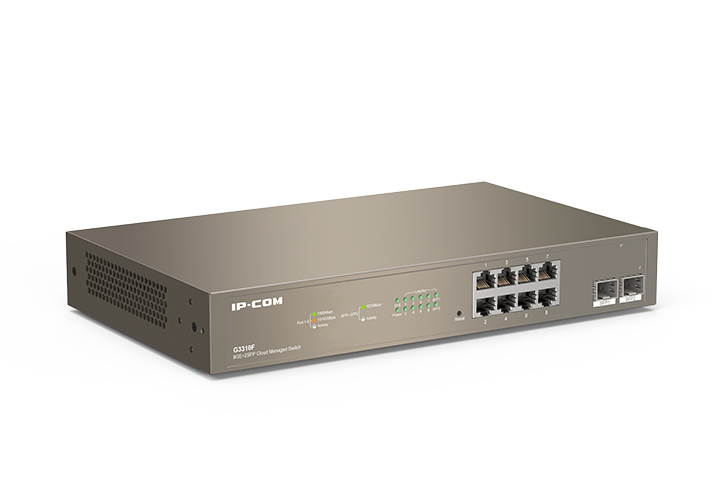

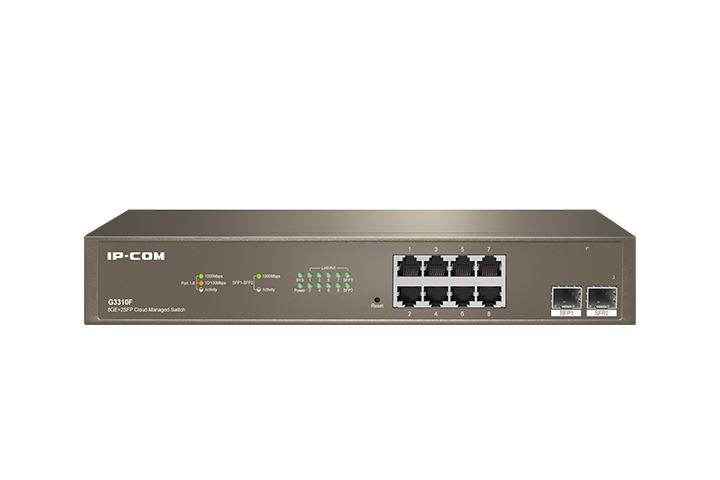

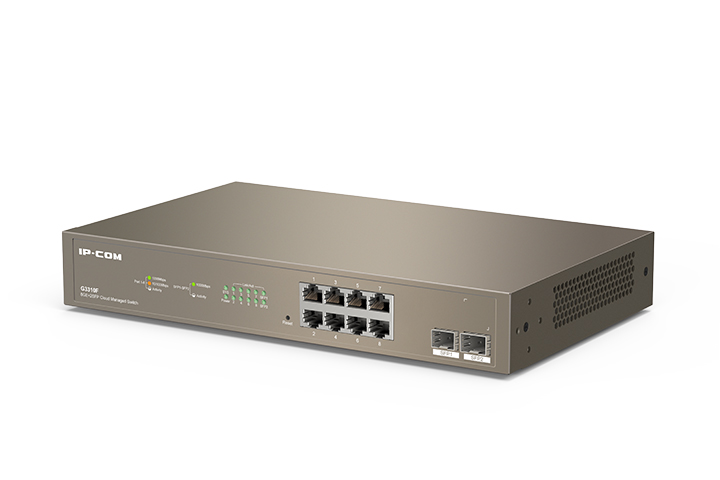

8GE+2SFP Cloud Managed Switch
  • Compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, and IEEE 802.1p/q/w/d standards
  • 8 x 10/100/1000 Base-T Ethernet ports; 2 x 100/1000 Base-X SFP ports
  • 16K MAC address and MAC address automatic learning
  • IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
  • Switching capacity: 20 Gbps
  • IMS Cloud and IP-COM IMS app remote cloud management; QVLAN, link aggregation, QoS, and MAC address binding supported
  • Standard 1U height; Desktop, wall-mount, and rack-mount installation supported
G3310F is a smart cloud management switch designed by IP-COM. It provides 8 gigabit Ethernet ports and 2 SFP ports, and supports IMS Cloud and IP-COM IMS app management, making network maintenance more efficient, after-sales cost lower, and management and configuration simpler.

App remote management

With one-tap, you can add the switch to automatically configure it, bring it online, and check its status anytime, anywhere.

IMS Cloud management

With IMS Cloud management, network maintenance becomes easier. You can remotely divide VLAN, remotely restart the switch, and enable STP protocol with one-click.

SFP port uplink

2 SFP uplink ports are offered to ensure a smooth long-distance cascading.

Various functions & features

With the 250-meter network extension, and such management functions as QVLAN, link aggregation, QoS, and MAC address binding, G3310F is applicable to multiple network scenarios.

  • Compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, and IEEE 802.1p/q/w/d standards
  • 8 x 10/100/1000 Base-T Ethernet ports; 2 x 100/1000 Base-X SFP ports
  • 16K MAC address and MAC address automatic learning
  • IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
  • Switching capacity: 20 Gbps
  • IMS Cloud and IP-COM IMS app remote cloud management; QVLAN, link aggregation, QoS, and MAC address binding supported
  • Standard 1U height; Desktop, wall-mount, and rack-mount installation supported
Hardware specifications
Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w and IEEE 802.1d
LED indicators One Link/Act LED indicator for each port
One Power LED indicator
One SYS LED indicator
Fixed ports 8 x 10/100/1000Base-T Ethernet port
2 x 1000Base-X SFP slot
Lightning protection Port: 6 kV
Power supply: 6 kV
Forwarding mode Store-and-forward
Switching capacity 20 Gbps
Packet forwarding rate 14.9 Mpps
Switching buffer 2 Mbit
MAC address table 16K
Input voltage 100 - 240V AC 50/60Hz
Dimensions (L x W x H) 294 mm * 179.6 mm * 44 mm
Environment Operating temperature: 0°C - 45°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage temperature: -40°C - 70°C
Storage humidity: (5% - 90%)RH, non-condensing
Certificates CCC, FCC, CE, RoHS
Software features
Security features MAC address binding supported
VLAN IEEE 802.1Q VLAN supported
DHCP Support DHCP client
Port aggregation Static aggregation supported
Dynamic aggregation supported
STP IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) supported
Port mirroring N: 1 port mirroring supported
QoS FIFO (First-In, First-Out) supported
SP (Strict Priority) supported
WP (Weighted Priority) supported
Loading and upgrade HTTP upgrade supported
Configuration import and export supported
Management and maintenance IP-COM IMS app management supported
Web UI management supported
IMS Cloud management supported
