G1110PF-8-120W

G1110PF-8-120W

9GE+1SFP Ethernet Switch With 8-Port PoE

G1110PF-8-120W G1110PF-8-120W G1110PF-8-120W G1110PF-8-120W

G1110PF-8-120W

9GE+1SFP Ethernet Switch With 8-Port PoE

  • Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3af/at standards
  • 8 * 10/100/1000Mbps Base-T Ethernet ports(Data/Power)
  • 1 * 10/100/1000Mbps Base-T Ethernet port(Data)
  • 1 * 100/1000Mbps Base-X SFP port
  • 16 K MAC address table and MAC address auto-learning
  • IEEE 802.3x full duplex flow control and backpressure half duplex flow control
  • 20Gbps switching fabric for non-blocking line-speed forwarding
  • Total power consumption of the switch:120W
  • Maximum PoE output of a single port:30W
  • Three-mode toggle: Standard,VLAN,Extend
  • Desktop installation & Wall mounting

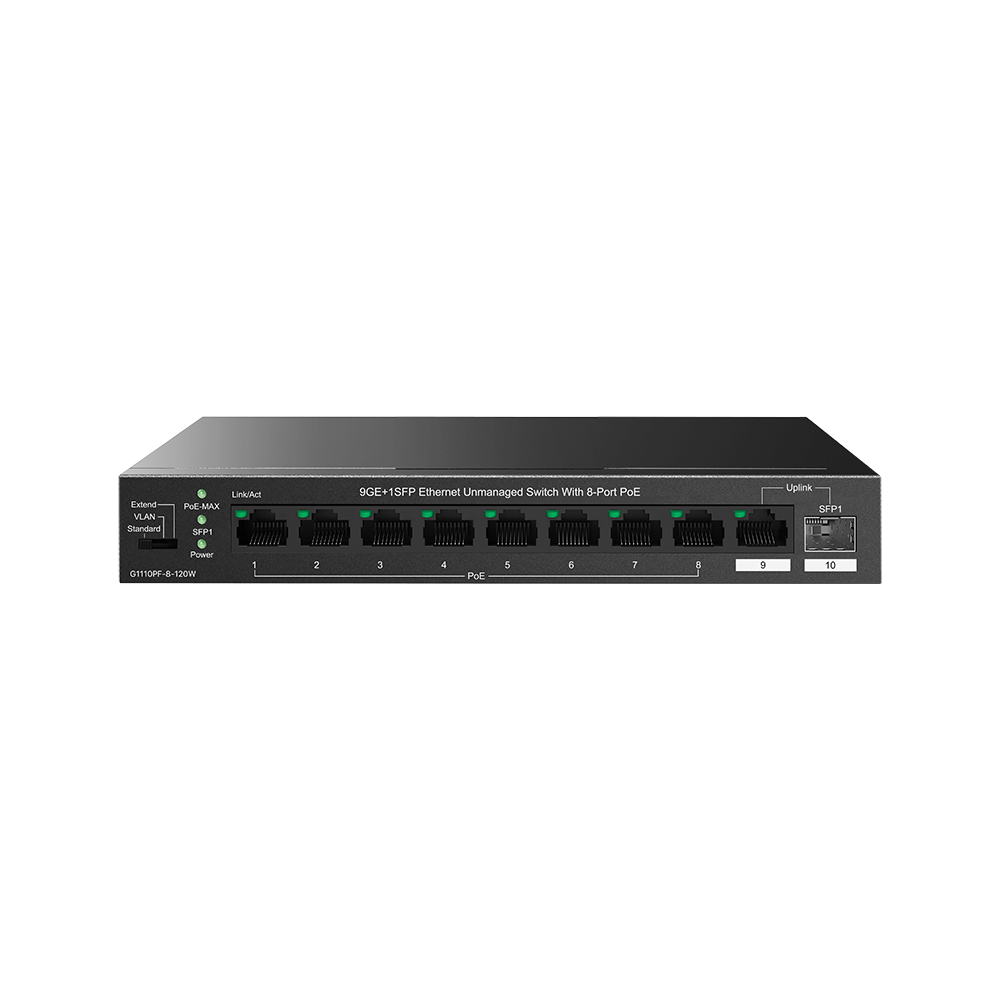

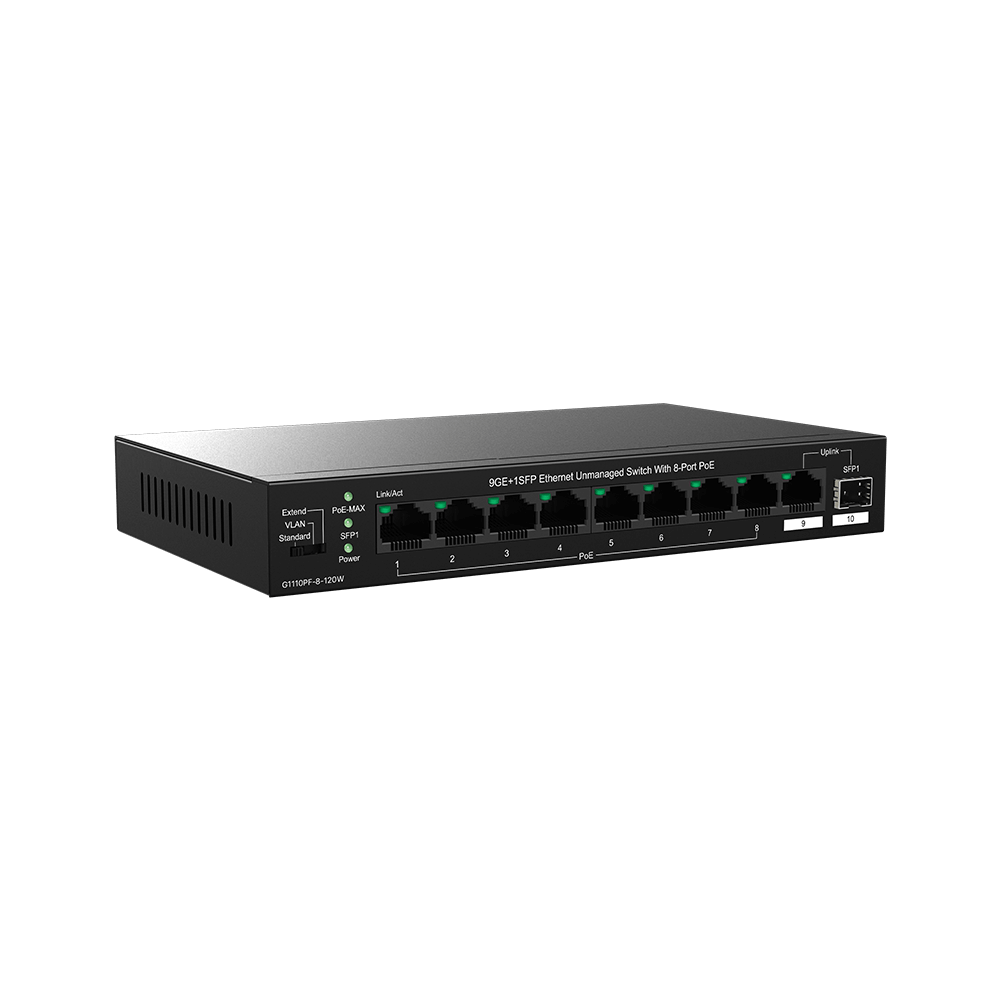

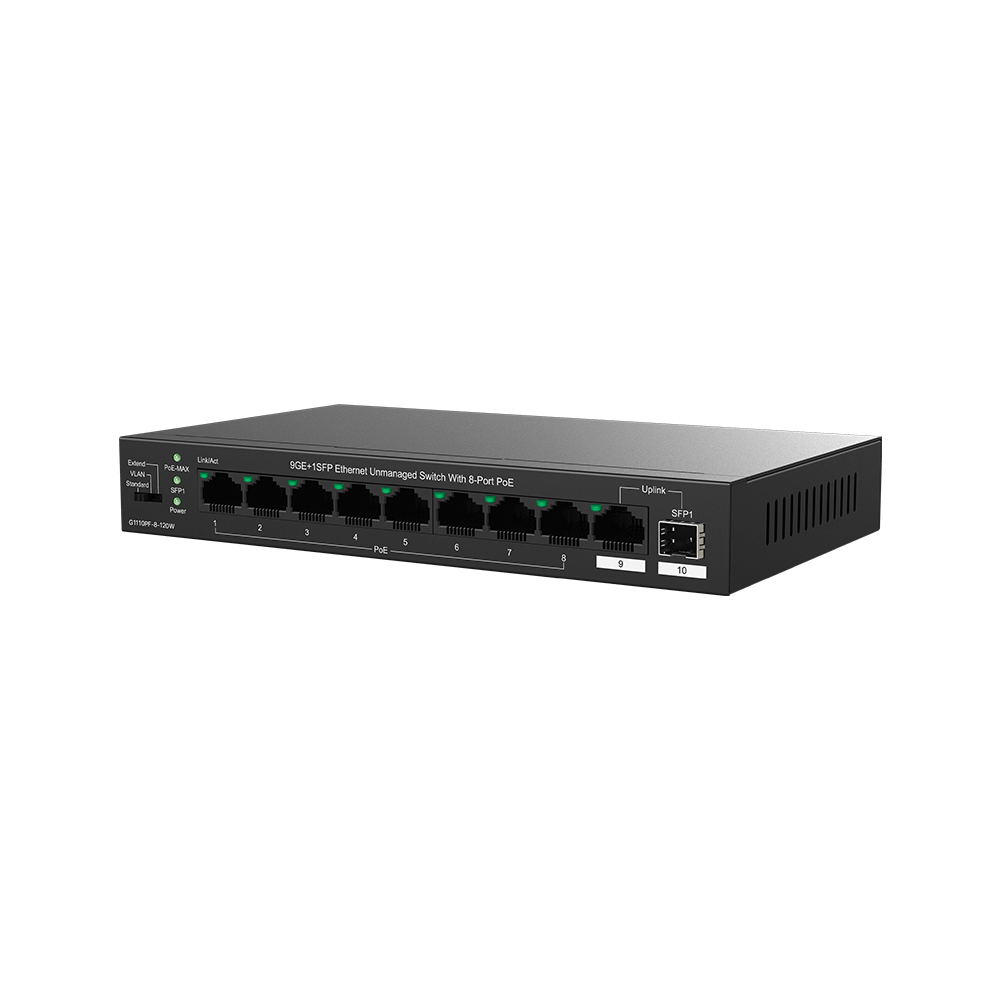

G1110PF-8-120W    Overview

G1110PF-8-120W, 9GE+1SFP Ethernet unmanaged switch with 8-port PoE, is independently designed by IP-COM. It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30W and the total power consumption of the switch is 120W.Supporting three-mode toggle, G1110PF-8-120W is suitable for complex networking deployment and is your ideal choice for video surveillance and gigabit wireless networking in such scenarios as SMEs, residential areas,industrial parks,hotels and schools.

Three-Mode Toggle

The switch supports 3 working modes of Standard, VLAN and Extend realizing flexible network deployment in complex cases with lowered cost.

6 KV Lightning Protection

The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.

Smart PoE Power Supply

The switch provides 8 gigabit PoE ports compliant with IEEE 802.3af/at standards, capable of transmitting data and supplying power for HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30W and the total power consumption of the switch is 120W.

RJ45 & SFP Uplink Ports

The switch supports both RJ45 and SFP uplink ports for flexible networking, with no need for cascading in scenarios of long-range transmission.
