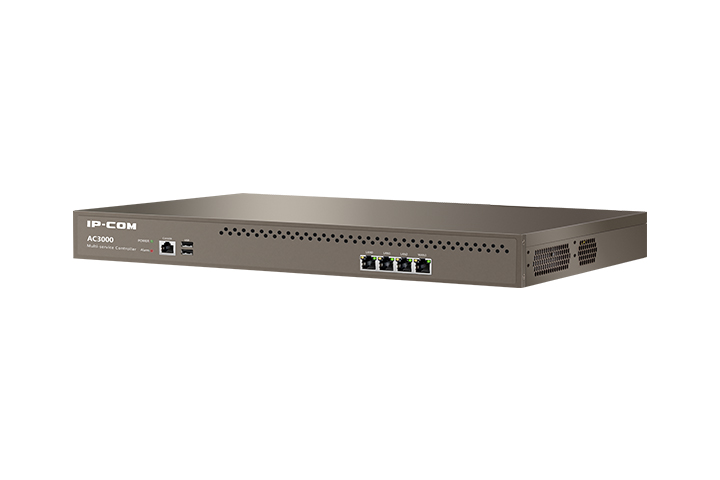

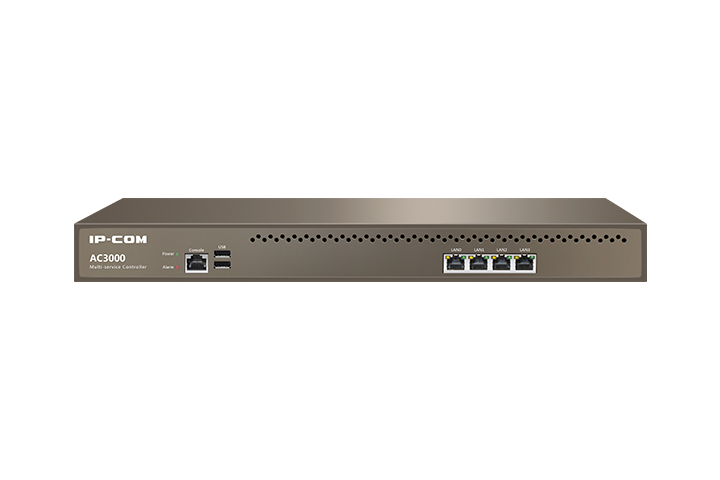

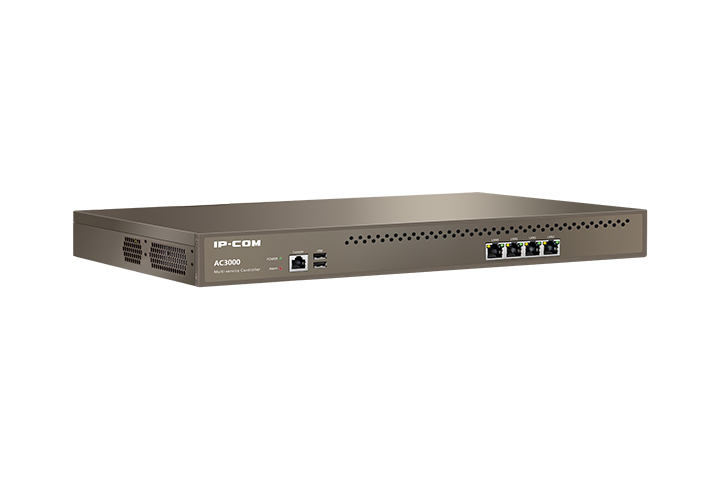

AC3000

IP-COM AP conctroller AC3000 is design to provide network solution for luxury hotel, resort, large enterprise, shopping mall chain etc premise. Adopt of powerful Intel CPU to deliver 8Gbps high capacity forwarding and 3000 APs management capacity.Also Abandant AP management features including concentrate forwarding and distribute forwarding, AP group Setting,WLAN Radio Spectrum Analysis,map plan. auto channel and power assignment, user load balance,Built-in captive portal server enable it to deliver Wi-Fi Marketing features including customerized welcome page and redirect page,50000 users authentication system, connected device type and user statistic.Otherwise AC3000 can manage AP and AP controller deployed in multi branch or location remotely . All these features help the administrator to install, manage and monitor APs at a single location.

AC3000 AC3000 AC3000 AC3000
  • X86 Hardware Platform
  • Centralized Manage AP from multi location or branch
  • Maximum AP manage number up to 3000
  • Max. user authentication number up to 50000
  • Intra-AC, Inter-AP L2 /L3 roaming time less than 50ms
  • WLAN Radio Spectrum Analysis to ensure work on best channel
  • Airtime Fairness provide equal access to all wireless clients
  • Auto channel and power assignment
  • Load balance based on the AP cluster
  • Portal, Facebook account authentication supported
  • Guest device identify, statistics and access behavior analysis

Powerful hardware design, Better performance

AC3000 adopt of powerful Intel CPU and X86 software platform, The total forwarding capacity could be up to 8Gbps and it could manage 3000 Aps when it is working in distribute forwarding mode.

Centralize and Distribute Forwarding Modes

AC3000 supports centralized forwarding mode and distributed forwarding mode. When it work in centralized forwarding modes, all wireless traffic will be forward to an AC for processing. Therefore, the forwarding capability of the AC may become a bottleneck. This is especially true on wireless networks where APs are deployed at branches, ACs are deployed at the headquarters, and APs and ACs are connected over internet. However, when it work in distributed forwarding mode, all wireless traffic will be forward to gateway directly. AC cannot provide traffic control as good as the centralized forwarding mode does. it can also distribute configuration, manage and monitor APs and user.

Radio Spectrum Analysis System

AC3000 features with radio spectrum analysis and optimization system. It is effectively increases the number of concurrent sessions in middle to high-density access, accomplishes streaming media application acceleration and QoS through character and protocol based RF optimization.

Auto channel and power assignment

When deploy APs in a WLAN, adjacent AP should work in different channels to avoid channel interference. However, channels are very rare resources for a WLAN. There are a small number of non-overlapping channels for APs. Therefore, the key to wireless applications is how to allocate channels for APs intelligently. Meanwhile, the adjacent APs will interferrence each other. The auto channel and power assignment technique can ensure optimal channel and power deploy between APs to deliver best WiFi performance.

Intelligent user load balance

Generally, wireless client choose an AP based on the Received Signal Strength Indication (RSSI). Therefore, many clients may choose the same AP with a high RSSI. As these clients share the same wireless medium, the throughput of each client is reduced greatly. The intelligent user load balance can analyze the connected clients of APs, dynamically determine which APs can share user load with adjacent AP to ensure all APs sharing users among these APs.

Layer-2 and Layer-3 Fast Roaming

AC3000 can work in centralized forwarding and support Layer-2 and Layer-3 fast roaming to solve the inter-subnet roaming problem. The fast roaming functionality allows wireless terminals to roam from one AP to another without following the complete 802.1X authentication process within 50 ms.

Multipurpose Wi-Fi Marketing System

AC3000 integrate with an powerful Wi-Fi marketing system to provide administrator with value-added features including
50000 user captive portal authentication server
Guest, web, social APPs account, Radius authentication
Customer welcome page and redirect website
Connected device identify and statistic
Connected customer traffic and behavior statisticGuest, web, social APPs account, Radius authentication
Customer welcome page and redirect website
Connected device identify and statistic
Connected customer traffic and behavior statistic

Visible network status statistics

AC3000 provide map floor, network topology, online device statistics and analysis, user statistics and analysis etc visible graphic tool. Administrator can view and diagnose network health at a glance.

Easy to deploy, Easy to manage

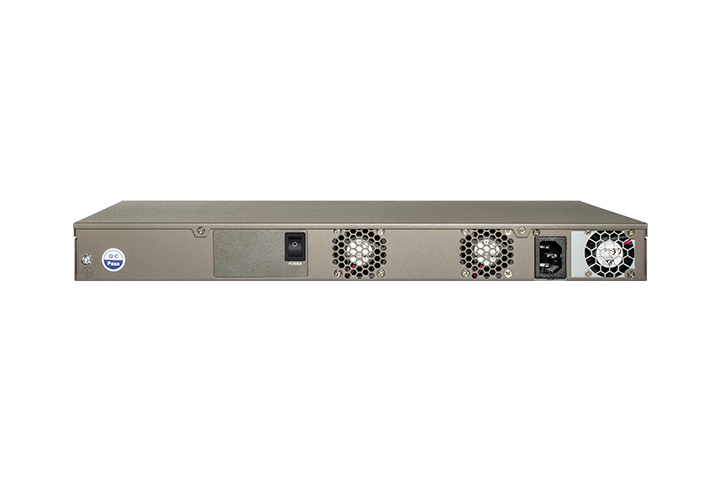

AC3000 adopt of 19 inch rackmount design to mount on the rack perfectly. And you just plug it into the exsiting network through branch deployment to manage all Aps without changing any network topology.
